LCM AT TRIPLE

Tempering machine

The LCM AT TRIPLE TEMPER was developed to have three different types of tempered chocolate available at the same time. The tanks, each with a capacity of 25 kg, operate completely independently of each other, and the processing parameters of each tank can be set via the common display.

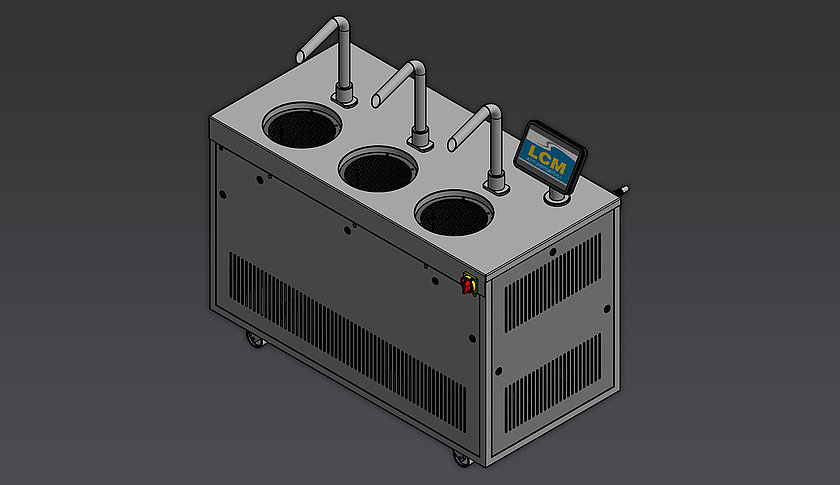

Schokoladenmaschine lcm 25 at triple temper ist zum temperieren und überziehen von Schokolade, als 3D-Render dargestellt.

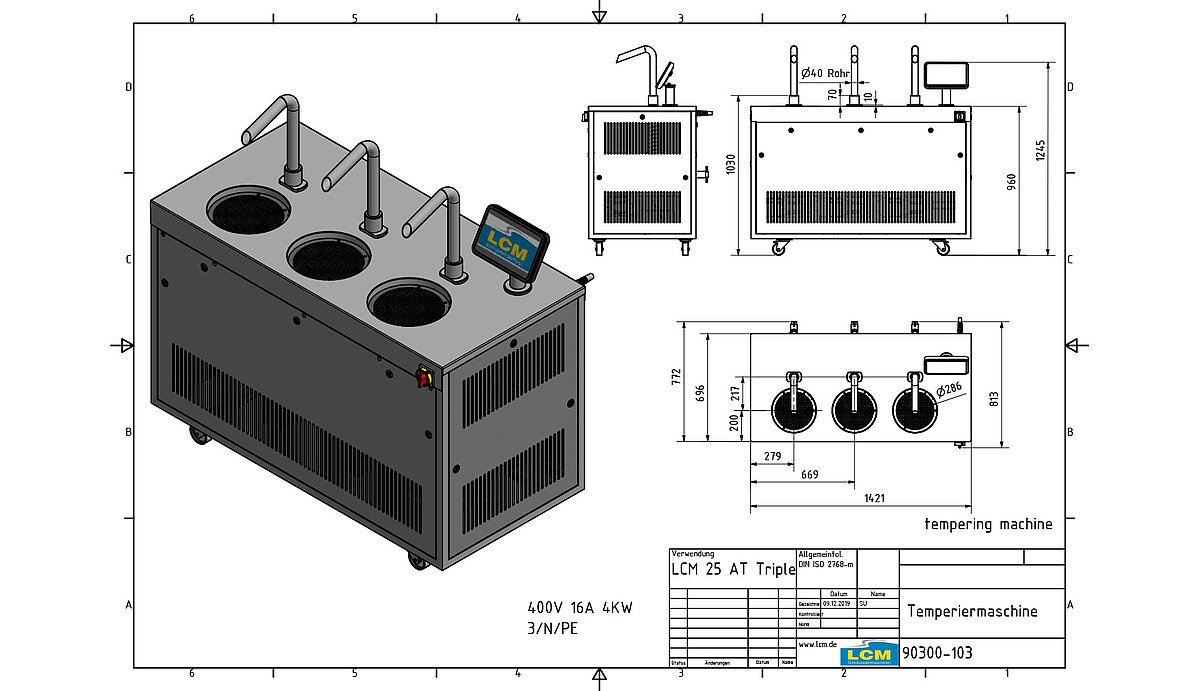

Schokoladenmaschine lcm 25 at triple zum temperieren und überziehen von Schokolade, als 3D-Render und als skizze mit größenmaßen dargestellt.

Product description

  • Flexible temperature control machine with a tank volume of max. 25 kg each
  • Comfortable operation via the 10" touch panel
  • Easy chocolate change and cleaning

Features

  • Three independently operating machines combined in one housing
  • PLC control, with 10" glass screen for comfortable operation and simple menu navigation
  • Different chocolate temperatures and settings (recipes) are programmable
  • Various accessories ready to be plugged in and operated via the touch panel, e.g. dosage
  • Standby function - temperature increase in the tank and interval for the stirrer to ensure perfect decrystallization during the work pause
  • Automatic, individual shutdown of the heating circuits depending on the filling quantity
  • Solid chocolate is dissolved over a period of about 8 hours
  • Liquid chocolate can be continuously refilled in small uniform quantities
  • Level measurement "minimum" via indicator light
  • Pouring tubes height-adjustable, swiveling and can also be removed for cleaning
  • FI residual current circuit breaker according to DIN VDE 0100-100 - safety of persons
  • Cooling system for temperature control in the lower part of the machine
  • Machine housing completely made of stainless steel, mobile on swivel castors

Technical data

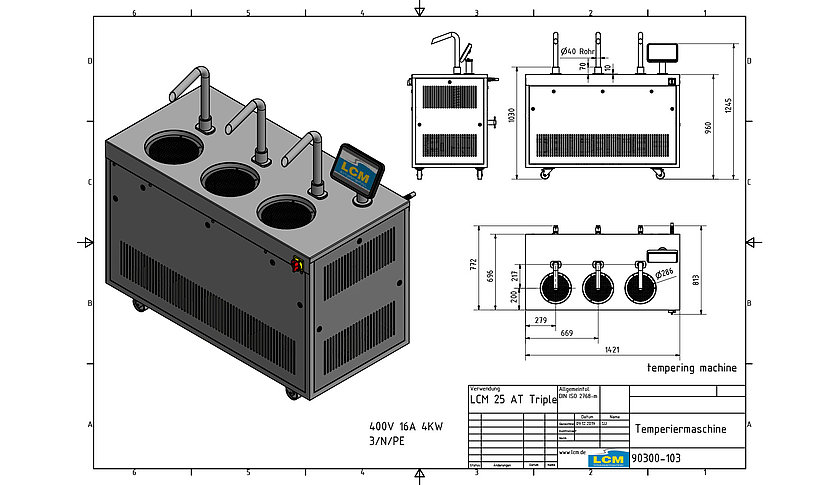

Schokoladenmaschine lcm 25 at triple zum temperieren und überziehen von Schokolade, als 3D-Render und als skizze mit größenmaßen dargestellt.
Capacity (kg)Width (cm)Depth (cm)Height (cm)**el. Connection (V/kW)Weight (kg)
LCM 25 AT TRIPLE2 x 251437896/103/125400/6.0250

** Height heated vat / working height / height machine
