LCM M

Chocolate melting tank with integrated pump

The LCM chocolate dissolvers with integrated pump are particularly suitable for fully automatic filling of tempering and coating machines. The dissolver is connected to the tempering or coating machine and refills on demand when it receives a corresponding signal.  The different variants of the LCM dissolvers can be found under technical data.

Features

  • Mobile chocolate dissolver on wheels with pump and different tank sizes.
  • Due to the auotmatic filling of the tempering and coating units, the chocolate quantity can always be kept at an optimal level
  • Agitator with interval control
  • Pump with own drive

Ausstattung

  • LCM dissolvers can be kept clean very easily as the drive unit is located at the bottom of the tank
  • Shut-off valve in the pipe system in front of the pump for easy service
  • Integrated chocolate pump with heated pipe system
  • Heated discharge pipe with drain cock for manual removal
  • External control of the pump via potential-free contact possible
  • Automatic switch-off of the individual heating circuits depending on the filling quantity
  • Electrical direct contact heaters, insulated to the outside, ensure accurate temperature values and reduce energy consumption
  • Slow rotating stable agitator, removable for cleaning
  • Agitator drive at the bottom of the tank
  • Stainless steel machine housing, mobile on sturdy swivel castor

Technical data

 Capacity (kg)Width (cm)Depth (cm)Machine height (cm)el. Connection (V/kW)Weight (kg)

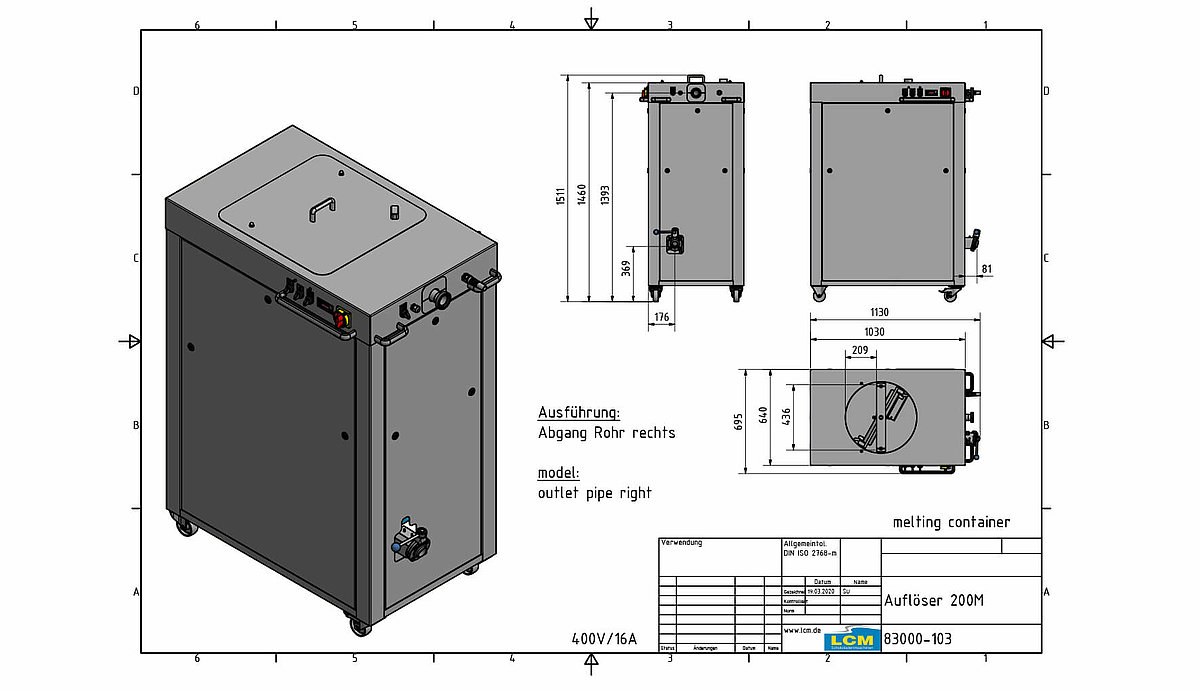

LCM 200 M20011370146400/2,7190

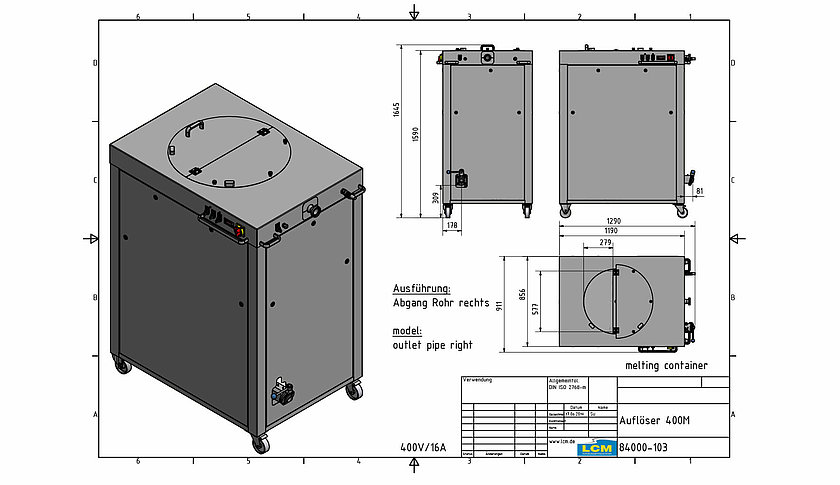

LCM 400 M40013091165400/3,0250

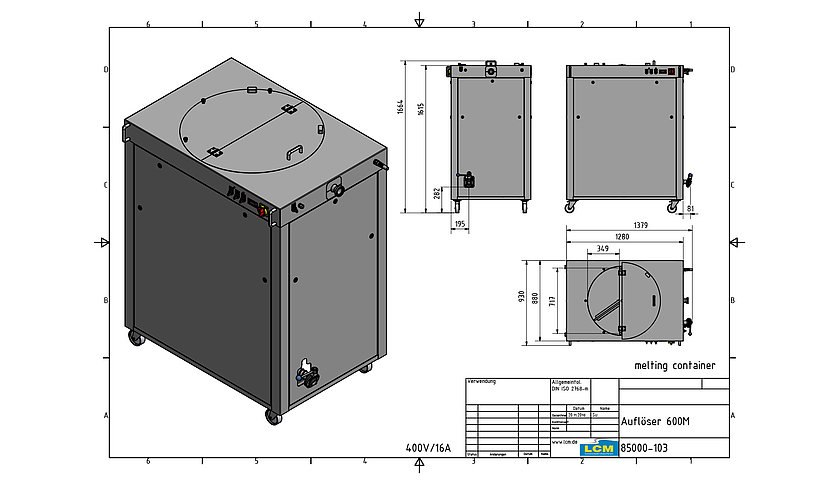

LCM 600 M60013893165400/3,3240
